微動跳躍彈性開關動態特性測試儀的結構設計
- 文件介紹：

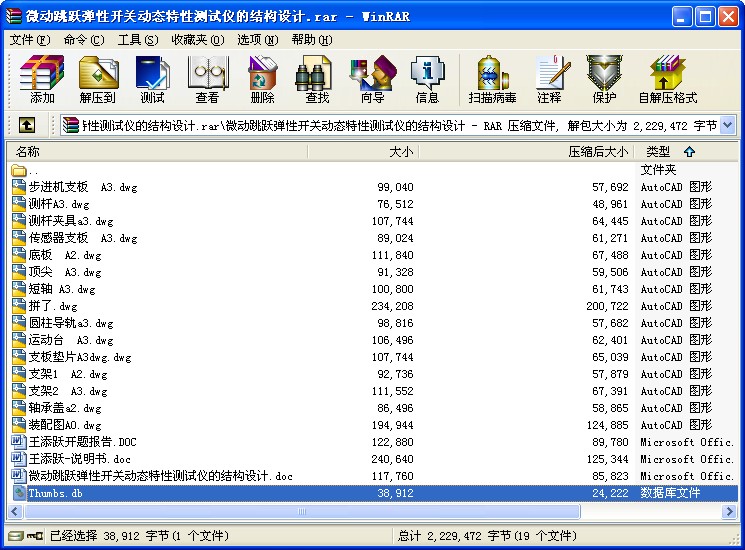

- 該文件為 rar 格式（源文件可編輯），下載需要
20 積分
-
- 微動跳躍彈性開關動態特性測試儀的結構設計
摘 要
測試儀裝置是為了能夠?qū)ξ?dòng)開關的動態特性進行檢驗的平臺，進而來提高開關的性能，保證其質量、提高勞動生產效率，也是現代檢測技術的基本要求。
基于檢測儀設計的理論，根據已有檢測儀的結構和設計經驗和工作原理，即電動機作為工作機構的動力源，將其主軸的旋轉動動經帶輪，圓柱導軌變?yōu)橥鶑?fù)直線運動，并同時產生一作用力，傳給傳感器，由傳感器記錄。對測試儀的動力學參數進行分析，確定測試儀裝置的結構與技術參數，從而給出了微動開關動態特性測試儀的本體結構設計方案。
根據測試儀的結構設計方案，論述了微動開關動態特性測試儀的結構設計，闡述了微動跳躍彈性開關動態特性測試儀的結構原理。本文主要論述了測試儀的測試過程，其主要包括測試儀的主要結構和儀器的組成，檢測跳躍彈性開關的力傳感器和位移特性。通過設計進而提高儀器的性能，保證儀器的工作質量，這也是現代檢測技術的基本要求。
關鍵詞：測試儀；動態；傳感器；結構；微動ABSTRACT
Tester device is in order to be able to micro-switches the dynamic characteristics of the test platform, and then switch to improve performance, guarantee its quality, raise labor productivity, as well as modern detection techniques basic requirements. Detector design based on the theory that, on the basis of the detector structure and design experience and the work principle that the electrical work as the power source, its spindle rotary dynamic drive pulley, cylindrical guide into reciprocating linear motion. and at the same time produce a force, transmission sensors, recorded by the sensor. Tester of the kinetic parameters for analysis, the tester device structure and technical parameters, which gives a micro-switch tester dynamic characteristics of the bulk structure design. According to the test instrument design case will, of fretting Switch Tester dynamic characteristics of structural design, Fretting expounded jump flexible switching dynamic characteristics tester principle of the structure. This paper mainly discusses the tester testing process, including its main tester of the main structural components and equipment, Detection Switch jump flexibility and displacement sensor characteristics. Through the design of equipment to further enhance the performance of the equipment to ensure the quality of their work, this is also a modern detection techniques basic requirements.
Key words：Tester; Dynamic; Sensor; Structure; Fretting
目 錄
摘要 I
ABSTRACT II
第1章 緒論 1
1.1 論文研究的背景及意義 1
1.2 研究現狀 1
1.3 本論文研究的主要內容 4
第2章 測試原理及測試平臺的構架 5
2.1測試原理 5
2.1.1微動跳躍彈性開關工作過程分析 5
2.1.2 測試參數的確定 6
2.2 測試平臺的構架 6
2.2.1 懸臂梁壓力式傳感器 6
2.2.2 測試平臺的機械構架 7
2.3 本章小結 8
第3章 測試系統設計與研制 9
3.1 測試系統的總體設計 9
3.2 測試系統的硬件設計 9
3.2.1 步進電機的控制原理 9
3.2.2 測試儀器的硬件連接 11
3.3 測試儀器的組成和位移的完成 11
3.4 測試儀的結構和主要特點 12
3.5 試系統軟件設計 13
3.6試系統控制程序 13
3.7本章小結 13
第4章 測試儀的傳動系統設計
4.1 電動機規格的選取 14
4.2 帶傳動設計 14
4.3 聯軸器的選用 16
4.4 傳動軸的設計 16
4.5 芯軸的設計 18
4.6 本章小結 18
第5章 主要領部件的設計 19
5.1 軸承的設計 19
5.2 鍵連接的設計 19
5.3 本章小結 20
結論 21
參考文獻 22
致謝 24 ...
