帶式稱重輸送機畢業設計
摘 要
本畢業設計的課題是“帶式稱重給料機”，在設計說明書中，介紹了設備的各部分功能及完成其功能而進行的特色各部分的詳細結構。
帶式稱重給料機是對散狀物料進行連續輸送和計量的設備。它具有結構簡單、操作方便、使用穩定可靠、稱量準確、維護量小等優點。被廣泛用于冶金、電力、礦山、煤炭、化工、建材、糧庫、港口等行業及部門。它可作為單機用于計量輸送（常習慣稱它為單機秤）又可多機組合進行計量配料（習慣稱之為配料皮帶秤）。

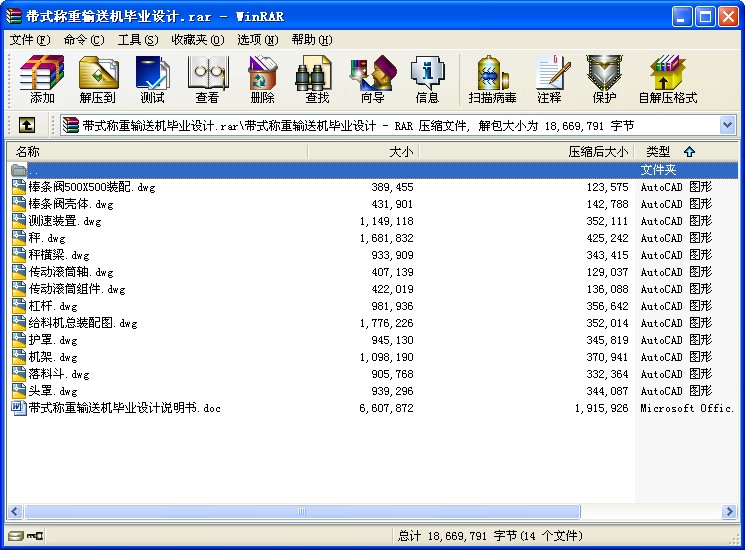

帶式稱重給料機由帶式輸送機和電子計量兩部分組成。在設計說明書中詳細介紹了給料機的各部分組成及功能。因本設計著重于機械設計，故按照國家標準輔助于計算機繪出了總圖量相當于2.5張的機械圖紙。有總裝配圖、主要的部件圖及零件圖等。最后本設計還給出了設計產品的安裝、調試及維護方面的要求與常識，供行業內人士參考。
本著既繼承又發展的原則，本設計除了在結構上有所創新外，同時參閱了有關專業論文及著作。
關鍵詞:稱重、帶式輸送機
ABSTRACT
The task of this graduation project is " The weighing belt feeder " , be living in the specification book , and introduced the detailed composition that the different part of meritorous service of installation be able to reach the distinguishing feature completees such meritorous service capacity but is underway every section .
Being living thoroughly to comprehend the style brought calls severely to give to anticipate that the wide-ranging use reaches such is living significant action queen in the middle national economy development to engine , unite specially having something to do with the teaching material , the design come out this task “weighing belt feeder ”.
The weighing belt feeder is used for continuous bulk material feeding and measurement. It is simple-structured, convenient to operate, reliable, and needs less maintenance. It is widely applied to industries such as metallurgy, power supply, chemistry, coal mining, warehousing, etc. It can be used independently or together with the others.
The style brought is called severely being anticipateed that the engine consists of that the style brought conveyer and the electron calculates two sections .
Being living in the specification book detailedly to introduce is anticipateed that engine every section is makeed up the meritorous service capacity .
As a result of native is designed to emphasize to machine designing , therefore in accordance the national standard assists to the calculating machine drawed the inflexible drawing that general drawing amount balancees 2.5 .
Components picture and part drawing and so on that possess the general assembly picture and main .
Finally native is designed still giving out design produce installation , debug and protection respect demand together with general knowledge , and feeies that public figure refers to inner place the profession .
Native is designed except for is living the somewhat innovation on the composition inheritance but also rule which developed in line with not only , and see also relevant specialized dissertation and the book moreover .
Keywords: weighting、belt conveyor
目 錄
1.緒論………………………………………………………………… 4
1.1總機簡介……………………………………………………………………… 4
1.2選題背景……………………………………………………………………… 5
1.3指導思想及主要工作………………………………………………………… 5
2.設計理論基礎……………………………………………………… 7
2.1原如數據及工作條件………………………………………………………… 7
2.2參數計算……………………………………………………………………… 7
3.主要部件的設計與選型…………………………………………… 9
3.1輸送系統……………………………………………………………………… 9
3.1.1機架總成…………………………………………………………………… 9
3.1.2傳動滾筒…………………………………………………………………… 9
3.1.3改向滾筒…………………………………………………………………… 10
3.1.4平托輥……………………………………………………………………… 12
3.1.5輸送皮帶…………………………………………………………………… 13
3.1.6驅動裝置…………………………………………………………………… 14
3.1.7附屬零部件………………………………………………………………… 16
3.2計量系統……………………………………………………………………… 20
3.2.1稱重橋架及系統標定……………………………………………………… 20
3.2.2稱重傳感器………………………………………………………………… 25
3.2.3測速傳感器………………………………………………………………… 26
3.2.4稱重儀表…………………………………………………………………… 28
3.2.5電氣控制系統……………………………………………………………… 38
結束語……………………………………………………………… 40
參考文獻…………………………………………………………… 41
...
